Warranty: Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty. Which ever comes first. Please contact MIBearings LLC before returning any bearing still under warranty. Contact: usabearings@aol.com

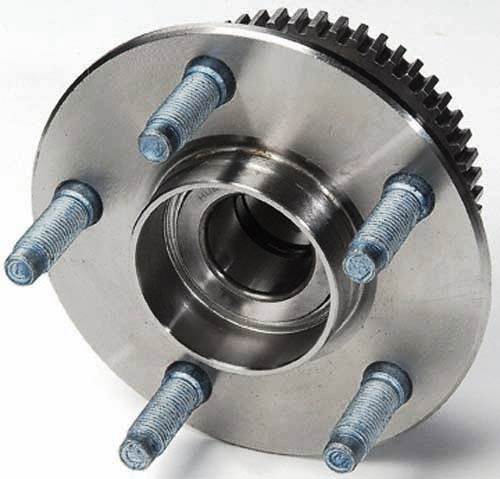

	Type	Wheel Bearing / Hub Assembly / Hub Bearing
	Manufacture	Wheel Bearings Inc
	Available to	Worldwide
	Manufactured In	Gaylord, MI, USA
Application: Rear Wheel 1997, 1998, 1999, 2000, 2001, 2002, 2003 Ford Windstar

Make	Model	Position	Year	App
FORD TRUCK - MINIVAN	Freestar, Windstar	REAR WHEEL	2003-1997	(From 8/4/97)

Specifications:

Description	Value
ABS/Non-ABS	Y
Bearing Type	Ball
Bolt Circle Diameter B	4.25
Bolt Circle Diameter B	107.95
Bolt Circle Diameter H	-
Bolt Circle Diameter H	-
Bolt Quantity Size I	-
Bolt Quantity Size I	-
Brake Pilot Dia E	64.41948
Brake Pilot Dia E	2.5362
Driven - Non Driven	N
Flange Diameter A	5.456
Flange Diameter A	138.5824
Flange Offset F	54.5846
Flange Offset F	2.149
Flange Shape J	-
Gen Type	2
Hub Pilot Dia G	2.913
Hub Pilot Dia G	73.9902
Lug Bolts (Y/N)	Y
Pass	Y
Roll Form	N
Spline Quantity	-
Stud Quantity Size	M12x1.5
Stud Quantity Size	(5)
Tone Ring / # Teeth	50
Tone Ring / Sensor / Encoder	T
Tone Ring Dia.	4.018
