Wheel Bearing Hub Assembly Part Number: 513061, BR930064
Zoom
Zoom


$99.95  + Shipping & Handling
Quantity:

For Continental US and Canada orders, shipping is calculated upon checkout.
If you are located outside the Continental US or Canada, You will be billed for shipping after we receive your order, and your order will be shipped upon payment for the shipping. If you would like, you can Contact Us to request a shipping quote before you place your order.
Any Questions? Please review our shipping terms or Contact Us.

Warranty Information Verify ApplicationSpecifications



Warranty:

Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty.

Which ever comes first.

Please contact MIBearings LLC before returning any bearing still under warranty.

Contact: usabearings@aol.com

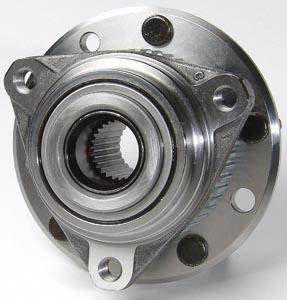

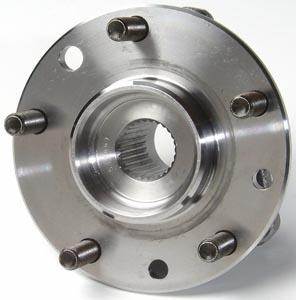

Type Wheel Bearing / Hub Assembly / Hub Bearing: 513061, BR930064
Manufacture Wheel Bearings Inc
Available to Worldwide
Manufactured In Gaylord, MI, USA
Application:

Make Model Position Year App
CHEVROLET/GMC TRUCK - Light Truck S10 Blazer/S15 Jimmy, S10/S15 PU/Sonoma, Syclone/Typhoon FRONT WHEEL 1997-1997
CHEVROLET/GMC TRUCK - Light Truck S10 Blazer/S15 Jimmy, S10/S15 PU/Sonoma, Syclone/Typhoon FRONT WHEEL 1996-1994
CHEVROLET/GMC TRUCK - Light Truck S10 Blazer/S15 Jimmy, S10/S15 PU/Sonoma, Syclone/Typhoon FRONT WHEEL 1993-1992 Blazer/Jimmy
CHEVROLET/GMC TRUCK - Light Truck Syclone/Typhoon FRONT WHEEL 1992-1991 Syclone, Typhoon
CHEVROLET/GMC TRUCK - Light Truck S10 Blazer/S15 Jimmy FRONT WHEEL 1991-1991 Blazer/Jimmy 4 Dr.
OLDSMOBILE TRUCK - MINIVAN, SUV Bravada FRONT WHEEL 1996-1991

Front Wheel 1990-1997 Chevrolet Jimmy 4WD with ABS

Front Wheel 1990-1997 Chevrolet S10 Blazer 4WD with ABS

Front Wheel 1990-1997 Chevrolet S10 4WD with ABS

Front Wheel 1990-1996 Chevrolet S15 4WD with ABS

Front Wheel 1997 Chevrolet S10 4WD with ABS Ring

Front Wheel 1997 Chevrolet S15 4WD with ABS Ring

Front Wheel 1990-1997 Chevrolet Sonoma S15 4WD with ABS

Front Wheel 1991 Chevrolet Syclone 4WD with ABS

Front Wheel 1992, 1993 Chevrolet Typhoon 4WD with ABS

Front Wheel 1996, 1997 Oldsmobile Bravada 4WD / AWD

Front Wheel 1991, 1992, 1993, 1994 Oldsmobile Bravada 4WD / AWD


Specifications
Specifications:
Description Value
ABS/Non-ABS Y
Bearing Type Ball
Bolt Circle Diameter B 4.75
Bolt Circle Diameter B 120.65
Bolt Circle Diameter H 120.65
Bolt Circle Diameter H 4.75
Bolt Quantity Size I M12x1.75
Bolt Quantity Size I (3)
Brake Pilot Dia E 70.6
Brake Pilot Dia E 2.77952755905512
Driven - Non Driven D
Flange Diameter A 5.68897637795276
Flange Diameter A 144.5
Flange Offset F 47.28
Flange Offset F 1.86141732283465
Flange Shape J Modified
Flange Shape J Triangle
Gen Type 3
Hub Pilot Dia G 3.20866141732283
Hub Pilot Dia G 81.5
Lug Bolts (Y/N) Y
Roll Form N
Spline Quantity 27
Stud Quantity Size M12x1.5
Stud Quantity Size (5)
Tone Ring / # Teeth 52
Tone Ring / Sensor / Encoder T
Tone Ring Dia. 100.6
Truck Y
