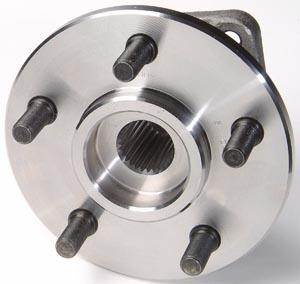

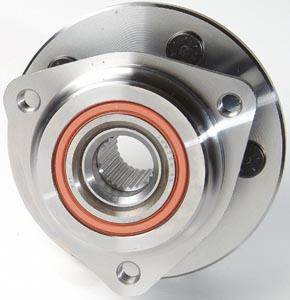

Wheel Bearing Hub Assembly Part Number: 513084, BR930014

Zoom Zoom



Quantity:

For Continental US and Canada orders, shipping is calculated upon checkout.
If you are located outside the Continental US or Canada, You will be billed for shipping after we receive your order, and your order will be shipped upon payment for the shipping. If you would like, you can Contact Us to request a shipping quote before you place your order.
Any Questions? Please review our shipping terms or Contact Us.

Warranty: Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty. Which ever comes first. Please contact MIBearings LLC before returning any bearing still under warranty. Contact: usabearings@aol.com

Type	Wheel Bearing / Hub Assembly / Hub Bearing: 513084, BR930014
Manufacture	Wheel Bearings Inc
Available to	Worldwide
Manufactured In	Gaylord, MI, USA
Application: Make Model Position Year App JEEP TJ, Wrangler FRONT WHEEL 1999-1990 Wrangler, TJ JEEP Cherokee (Composite Disc) FRONT WHEEL 1999-1989 Cherokee (Composite Disc) JEEP Grand Cherokee FRONT WHEEL 1998-1993 Grand Cherokee JEEP Cherokee (Composite Disc) FRONT WHEEL 1999-1999 Cherokee (Composite Disc) JEEP Cherokee, Grand Cherokee FRONT WHEEL 1998-1990 Cherokee, Grand Cherokee JEEP Comanche FRONT WHEEL 1992-1990 Comanche JEEP Comanche, Pickup (Dana/Spicer 30 Axle) FRONT WHEEL 1992-1990 Comanche, Pickup (Dana/Spicer 30 Axle) Front Wheel 1998-92 Jeep Comanche 4WD / AWD Front Wheel 1998-93 Jeep Grand Cherokee 4WD / AWD Front Wheel 1990 Jeep Wagoneer 4WD / AWD Front Wheel 2001-90 Jeep Wrangler 4WD / AWD Specifications: Description Value ABS/Non-ABS N Bearing Type Tapered Bolt Circle Diameter B 114.3 Bolt Circle Diameter B 4.5 Bolt Circle Diameter H 4.75 Bolt Circle Diameter H 120.65 Bolt Quantity Size I M12x1.75 Bolt Quantity Size I (3) Brake Pilot Dia E 71.882 Brake Pilot Dia E 2.83 Driven - Non Driven D Flange Diameter A 6.062 Flange Diameter A 153.9748 Flange Offset F 54.1782 Flange Offset F 2.133 Flange Shape J Modified Flange Shape J Triangle Gen Type 2 Hub Pilot Dia G 100.1268 Hub Pilot Dia G 3.942 Lug Bolts (Y/N) Y Roll Form N Spline Quantity 27 Stud Quantity Size 1/2-20 Stud Quantity Size (5) Tone Ring / # Teeth - Tone Ring / Sensor / Encoder - Tone Ring Dia. - Truck Y
