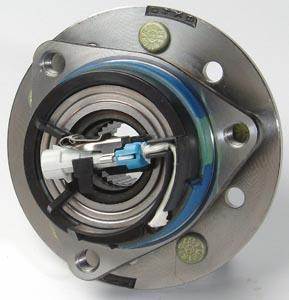

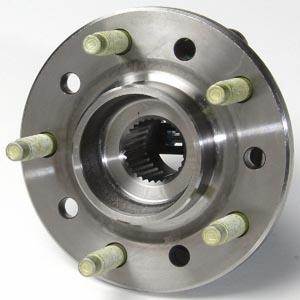

Wheel Bearing Hub Assembly Part Number: 513137, BR930080

Zoom Zoom

$81.95

Quantity:

For Continental US and Canada orders, shipping is calculated upon checkout.
If you are located outside the Continental US or Canada, You will be billed for shipping after we receive your order, and your order will be shipped upon payment for the shipping. If you would like, you can Contact Us to request a shipping quote before you place your order.
Any Questions? Please review our shipping terms or Contact Us.

Warranty: Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty. Which ever comes first. Please contact MIBearings LLC before returning any bearing still under warranty. Contact: usabearings@aol.com *Warranty Does Not Cover Commercial Use

Type	Wheel Bearing / Hub Assembly / Hub Bearing: 513137, BR930080
Manufacture	Wheel Bearings Inc
Available to	Worldwide
Manufactured In	Gaylord, MI, USA
Application: Make Model Position Year CHEVROLET - FRONT DRIVE Classic FRONT WHEEL 2005-2004 CHEVROLET - FRONT DRIVE Malibu, Fleet Classic (Fleet Vehicle) FRONT WHEEL 2003-1997 OLDSMOBILE - FRONT DRIVE Alero FRONT WHEEL 2004-1999 PONTIAC - FRONT DRIVE Grand Am FRONT WHEEL 2005-1999 Front Wheel 2004, 2005 Chevrolet Classic Front Wheel 1997-2003 Chevrolet Malibu Front Wheel 1999-2004 Oldsmobile Alero Front Wheel 1997, 1998, 1999 Oldsmobile Cutlass with ABS Front Wheel 1997, 1998, 1999 Oldsmobile Cutlass Supreme with ABS Front Wheel 1999-2005 Pontiac Grand Am

Specifications:

Description	Value
ABS/Non-ABS	Y
Bearing Type	Ball
Bolt Circle Diameter B	4.52755905511811
Bolt Circle Diameter B	115
Bolt Circle Diameter H	116
Bolt Circle Diameter H	4.56692913385827
Bolt Quantity Size I	M12x1.75
Bolt Quantity Size I	(3)
Brake Pilot Dia E	70.6
Brake Pilot Dia E	2.77952755905512
Driven - Non Driven	D
Flange Diameter A	5.72834645669291
Flange Diameter A	145.5
Flange Offset F	37.1
Flange Offset F	1.46062992125984
Flange Shape J	Modified
Flange Shape J	Triangle
Gen Type	3
Hub Pilot Dia G	3.5992125984252
Hub Pilot Dia G	91.42
Lug Bolts (Y/N)	Y
Pass	Y
Roll Form	N
Spline Quantity	30
Stud Quantity Size	M12x1.5
Stud Quantity Size	(5)
Tone Ring / # Teeth	-
Tone Ring / Sensor / Encoder	S
Tone Ring Dia.	-
