Type	Wheel Bearing / Hub Assembly / Hub Bearing
Manufacture	WBI
Available to	Worldwide
Manufactured In	USA

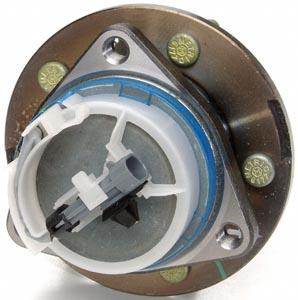

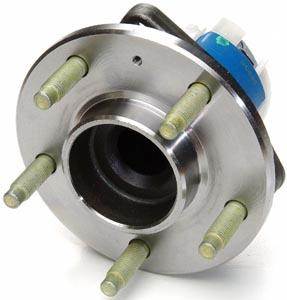

Image FM# SKF# OEM# DESC. LOCATION ABS APPLICATION 513186   BR930298 12413071 Non-Drive FRONT V 2005-2005 Cadillac CTS 2006-2006 Cadillac CTS 2007-2007 Cadillac CTS 2003-2004 Cadillac CTS 2005-2007 Cadillac CTS Make Model Position Year CADILLAC - REAR DRIVE CTS FRONT WHEEL 2007-2003 CADILLAC - REAR DRIVE STS (Exc. Performance Pkg) FRONT WHEEL 2009-2005 Specifications: Description Value ABS/Non-ABS Y Bearing Type Ball Bolt Circle Diameter B 4.52755905511811 Bolt Circle Diameter B 115 Bolt Circle Diameter H 116 Bolt Circle Diameter H 4.56692913385827 Bolt Quantity Size I M12x1.75 Bolt Quantity Size I (3) Brake Pilot Dia E 70.6 Brake Pilot Dia E 2.77952755905512 Driven - Non Driven N Flange Diameter A 5.72834645669291 Flange Diameter A 145.5 Flange Offset F 42.18 Flange Offset F 1.66062992125984 Flange Shape J Modified Flange Shape J Triangle Gen Type 3 Hub Pilot Dia G 3.5992125984252 Hub Pilot Dia G 91.42 Lug Bolts (Y/N) Y Pass Y Spline Quantity - Stud Quantity Size M12x1.5 Stud Quantity Size (5) Tone Ring / # Teeth - Tone Ring / Sensor / Encoder S Tone Ring Dia. -
