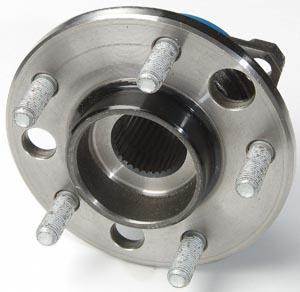

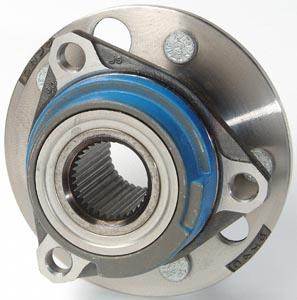

Wheel Bearing Hub Assembly Part Number: 513088, BR930077

Zoom Zoom



Quantity:

For Continental US and Canada orders, shipping is calculated upon checkout.
If you are located outside the Continental US or Canada, You will be billed for shipping after we receive your order, and your order will be shipped upon payment for the shipping. If you would like, you can Contact Us to request a shipping quote before you place your order.
Any Questions? Please review our shipping terms or Contact Us.

Warranty: Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty. Which ever comes first. Please contact MIBearings LLC before returning any bearing still under warranty. Contact: usabearings@aol.com

Type	Wheel Bearing / Hub Assembly / Hub Bearing: 513088, BR930077
Manufacture	Wheel Bearings Inc
Available to	Worldwide
Manufactured In	Gaylord, MI, USA
Application: Make Model Position Year App BUICK - FRONT DRIVE LeSabre FRONT WHEEL 1992-1992 LeSabre (Non-ABS) CADILLAC - FRONT DRIVE DeVille, Fleetwood FRONT WHEEL 1993-1992 (Non-ABS) OLDSMOBILE - FRONT DRIVE Eighty-Eight's FRONT WHEEL 1993-1992 88 (Non-ABS) PONTIAC - FRONT DRIVE Bonneville FRONT WHEEL 1992-1992 (Non-ABS) Front Wheel 1992 Buick LeSabre, without ABS Front Wheel 1992, 1993 Cadillac Deville, without ABS Front Wheel 1992, 1993 Cadillac Fleetwood, without ABS Front Wheel 1992 Oldsmobile 88, without ABS Front Wheel 1992 Pontiac Bonneville without ABS Specifications: Description Value ABS/Non-ABS N Bearing Type Ball Bolt Circle Diameter B 115 Bolt Circle Diameter B 4.52755905511811 Bolt Circle Diameter H 4.56692913385827 Bolt Circle Diameter H 116 Bolt Quantity Size I 12.96 (3) Bolt Quantity Size I 0.51 Brake Pilot Dia E 2.77952755905512 Brake Pilot Dia E 70.6 Driven - Non Driven D Flange Diameter A 5.72834645669291 Flange Diameter A 145.5 Flange Offset F 1.66062992125984 Flange Offset F 42.18 Flange Shape J Triangle Flange Shape J Modified Gen Type 3 Hub Pilot Dia G 91.42 Hub Pilot Dia G 3.5992125984252 Lug Bolts (Y/N) Y Pass Y Roll Form N Spline Quantity 33 Stud Quantity Size M12x1.5 Stud Quantity Size (5) Tone Ring / # Teeth - Tone Ring / Sensor / Encoder - Tone Ring Dia. -
