Zoom Zoom

$79.95  + Shipping & Handling

Quantity:

For Continental US and Canada orders, shipping is calculated upon checkout.
If you are located outside the Continental US or Canada, You will be billed for shipping after we receive your order, and your order will be shipped upon payment for the shipping. If you would like, you can Contact Us to request a shipping quote before you place your order.
Any Questions? Please review our shipping terms or Contact Us.

Warranty: Wheel Bearings Inc (WBI) Provides a 12 Month, 12,000 Mile (19312 km) Warranty. Which ever comes first. Please contact MIBearings LLC before returning any bearing still under warranty. Contact: usabearings@aol.com *Warranty does not cover Commercial use

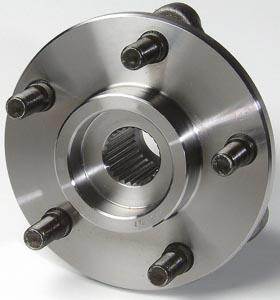

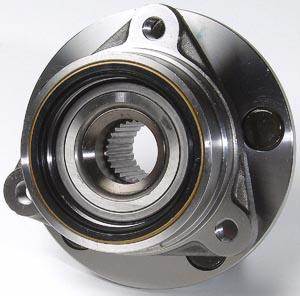

Type	Wheel Bearing / Hub Assembly / Hub Bearing: 513107, BR930040
Manufacture	Wheel Bearings Inc
Available to	Worldwide
Manufactured In	Gaylord, MI, USA
Application: Make Model Position Year App JEEP LIGHT TRUCK - Jeep, Jeepster, CJ5, CJ7, CJ8, DJ, Scrambler, Sahara, TJ, Wrangler FRONT WHEEL 1989-1987 LIGHT TRUCK - Jeep, Jeepster, CJ5, CJ7, CJ8, DJ, Scrambler, Sahara, TJ, Wrangler JEEP Cherokee FRONT WHEEL 1989-1984 Cherokee JEEP Comanche, Pickup (Dana/Spicer 30 Axle)(Hub Assy.) FRONT WHEEL 1989-1984 Comanche, Pickup (Dana/Spicer 30 Axle)(Hub Assy.) Front Wheel 1984-1989 Jeep Cherokee 4WD / AWD Front Wheel 1986-1989 Jeep Comanche 4WD / AWD Front Wheel 1984-1989 Jeep Grand Cherokee 4WD / AWD Front Wheel 1984-1989 Jeep Wagoneer 4WD / AWD Front Wheel 1987-1989 Jeep Wrangler 4WD / AWD Specifications: Description Value ABS/Non-ABS N Bearing Type Ball Bolt Circle Diameter B 4.5 Bolt Circle Diameter B 114.3 Bolt Circle Diameter H 120.65 Bolt Circle Diameter H 4.75 Bolt Quantity Size I M12x1.75 Bolt Quantity Size I (3) Brake Pilot Dia E 71.83 Brake Pilot Dia E 2.82795275590551 Driven - Non Driven D Flange Diameter A 5.66929133858268 Flange Diameter A 144 Flange Offset F 46 Flange Offset F 1.81102362204724 Flange Shape J Modified Flange Shape J Triangle Gen Type 1 Hub Pilot Dia G 3.93700787401575 Hub Pilot Dia G 100 Lug Bolts (Y/N) Y Roll Form N Spline Quantity 27 Stud Quantity Size 1/2-20 Stud Quantity Size (5) Tone Ring / # Teeth - Tone Ring / Sensor / Encoder - Tone Ring Dia. - Truck Y
